Marine Incinerator to Burn Onboard Solid Waste& Oil Sludge

Description
The hangyu marine incinerator type HYINC-18, which is designed for on board incineration of ship's waste oil and solid, it mainly consists of four parts:
A. Combustion chamber with diesel oil burner, sludge burner, and electric control panel.
B. Flue gas fan
C. Flue gas damper.
D. Sludge tank with circulating pump and heater.
Details
The incinerator HYINC-18 is equipped with single door in front, which are intended for loading
Of solid waste and ash removing, the incinerator in stand-by mode(COM. Tem. Less than 220° C), the doors can be opened properly. If the incinerator is running in cooling down mode, the door can be opened till COM. Tem. Less than 100° C and incinerator fully stop.
The electrical control panel is installed on the incinerator and it contains fuses, starters, PLC and
Operator panel. The electric panel is built according to international standards for marine equipment.
The operator panel which is located at the right side of the control panel has a touch screen and
Defined keys for system starting/stopping and selecting burner modes. The burning process is controlled by the PLC and monitored by the HMI(human machine interface)and scanned by a photo resistor. The combustion chamber temperatures are also regulated automatically by the PLC control system.

marine incinerator

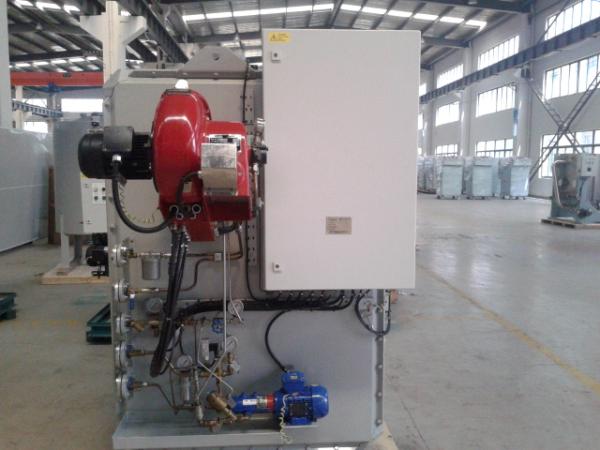

Marine Incinerator to Burn Onboard Solid Waste& Oil Sludge Images
